Advanced Permanent Nano‑Engineered Protection

Pearl Nano Ceramic Body Coating Quartz 9H is a highly advanced Nano‑engineered ceramic coating designed to chemically bond at a microscopic level to a wide range of automotive and marine surfaces. Once applied, it forms a permanent, transparent, glass‑like protective layer that enhances gloss, increases durability, and delivers long‑term resistance against environmental, chemical, and UV‑induced degradation.

Engineered for paintwork, headlamps, chrome, aluminium, plastics, fibreglass, and gel coats, Quartz 9H provides the ultimate long‑life protection even in the harshest global climates — from scorching desert heat to extreme polar conditions.

Permanent Chemical Bond

• Creates a permanent, transparent, glass‑like coating
• Chemically bonds to paintwork, plastics, chrome, aluminium, headlamps, fibreglass, and gel coats
• Can only be removed by abrasion, ensuring long‑term structural integrity
• Enhances and protects gloss levels with no future waxing required

UV, Chemical & Corrosion Resistance

• Contains unique UV screens that proactively block atmospheric degradation, sun bleaching and fading
• Resistant to repeated washing cycles across a wide pH range from pH 2 to pH 13.5
• Protects against corrosive contaminants, detergents, road salts, and chemical fallout
• Maintains clarity, colour stability, and surface integrity year‑round

9H Hardness – Scratch Resistant Protection

• Tested to pencil hardness 9H
• Provides a tough, scratch‑resistant barrier ideal for high‑wear areas
• Helps preserve the original finish even under demanding conditions

Super Hydrophobic ‘Lotus‑Leaf Effect’ Technology

• Advanced Nano technology repels water, dirt, and contaminants
• Dramatic water‑repellent behaviour minimises water spotting
• Keeps treated surfaces cleaner for longer
• Eliminates the need for waxing throughout ownership

Outstanding Durability

• Quick, simple, and easy single‑coat application
• Up to 3 years durability per coat (20ml per coat)
• Additional layers can extend protection up to 6 years
• Ideal for professional detailers and premium protection packages

Exceptional Performance in All Climates

• Engineered for extreme environmental conditions
• Proven performance in hot desert climates and inclement polar regions
• Maintains hydrophobicity, gloss, and protective strength regardless of temperature or weather exposure

Perfect for New Vehicles & Vessels

Ideal for:

• Professional detailers looking to upsell premium ceramic protection services
• Cars, motorcycles, caravans, marine vessels, and motorhomes
• Protecting vehicle and vessel residual value through long‑term wheel and rim preservation
• Prestige detailing specialists working on supercars, luxury vehicles, and yachts
• Dealership points of sale offering high‑value protection packages

Directions for Use

Shake before use.

1. Surface Preparation

Before application, ensure all paintwork is fully pre‑treated:

• Remove scratches, swirl marks, holograms, and existing coatings using:
  • Pearl Scratch Remover (PL088) or Pearl Cerami X (PL080) for light‑duty/soft paintwork
  • Pearl Tornado (PL057) or Pearl Cerami HD (PL081) for heavy‑duty/hard lacquer rectification

Ensure the surface is cool, clean, and completely dry.

For optimum bonding, remove all dirt, grease, compound residue, silicone contaminants, and wax using Pearl Universal Multi‑Surface Cleaner (PL008) and panel wipe.

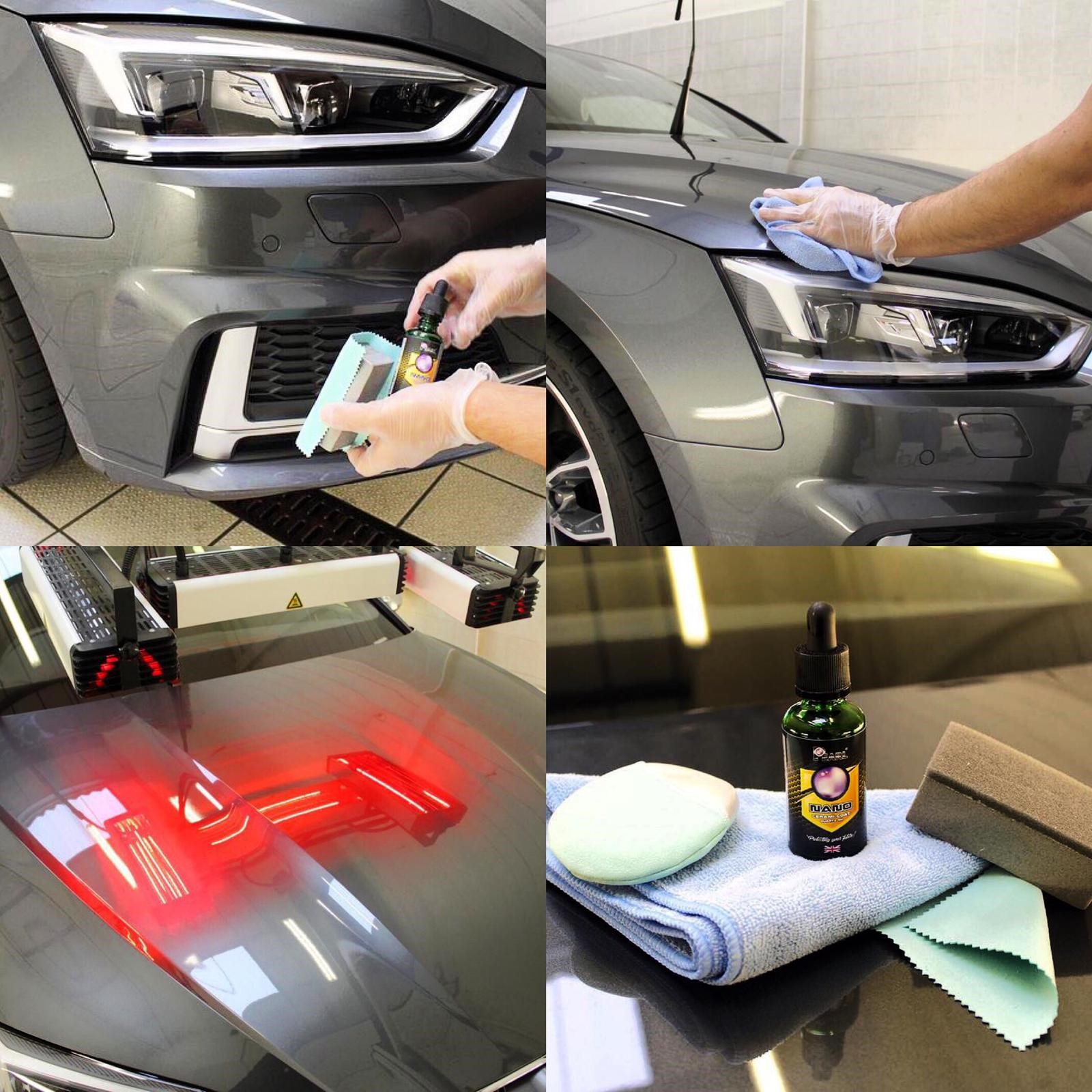

2. Application

1. Wrap a Pearl Quartz Applicator Block (PLA31AB) with a Pearl Quartz Suede Cloth (PLA32SC).
2. Discharge one full pipette of Nano Ceramic Coating Quartz 9H along the face of the cloth.
3. Apply evenly in a cross‑hatch pattern (horizontal then vertical) over an area no larger than 60 × 60 cm (2 ft × 2 ft).
4. Allow the coating to flash off for up to 5 minutes (climate dependent).
5. Wipe the treated area using a high-quality Pro Microfibre Cloth, working from the outside of the application zone inward to remove initial residue.
6. Turn the cloth and continue buffing until all residue is removed and a high‑gloss finish is achieved.
7. Repeat the process panel by panel until the entire vehicle is coated.

For increased durability, a second layer of Nano Ceramic Coating Quartz 9H may be applied 4 hours after the initial application.

3. Application Advice

• Apply indoors at 15–25°C, out of direct sunlight.
• Keep the vehicle indoors for a minimum of 12 hours after application to ensure full curing.
• Curing can be accelerated using infrared: 5 minutes per panel at 65°C.

4. Coating Maintenance & Care

• To maintain the mirror‑gloss finish and optimum hydrophobic performance, clean surfaces using:
  • Pearl Professional (PL052) all‑in‑one cleaner and preserver for routine cleaning.
  • Pearl Advanced Ultra Nano (PL051) all-in-one cleaner and superhydrophobic booster.

These products ensure road salts and acidic contaminants do not adhere or attack the treated surfaces.

Typical Specification
